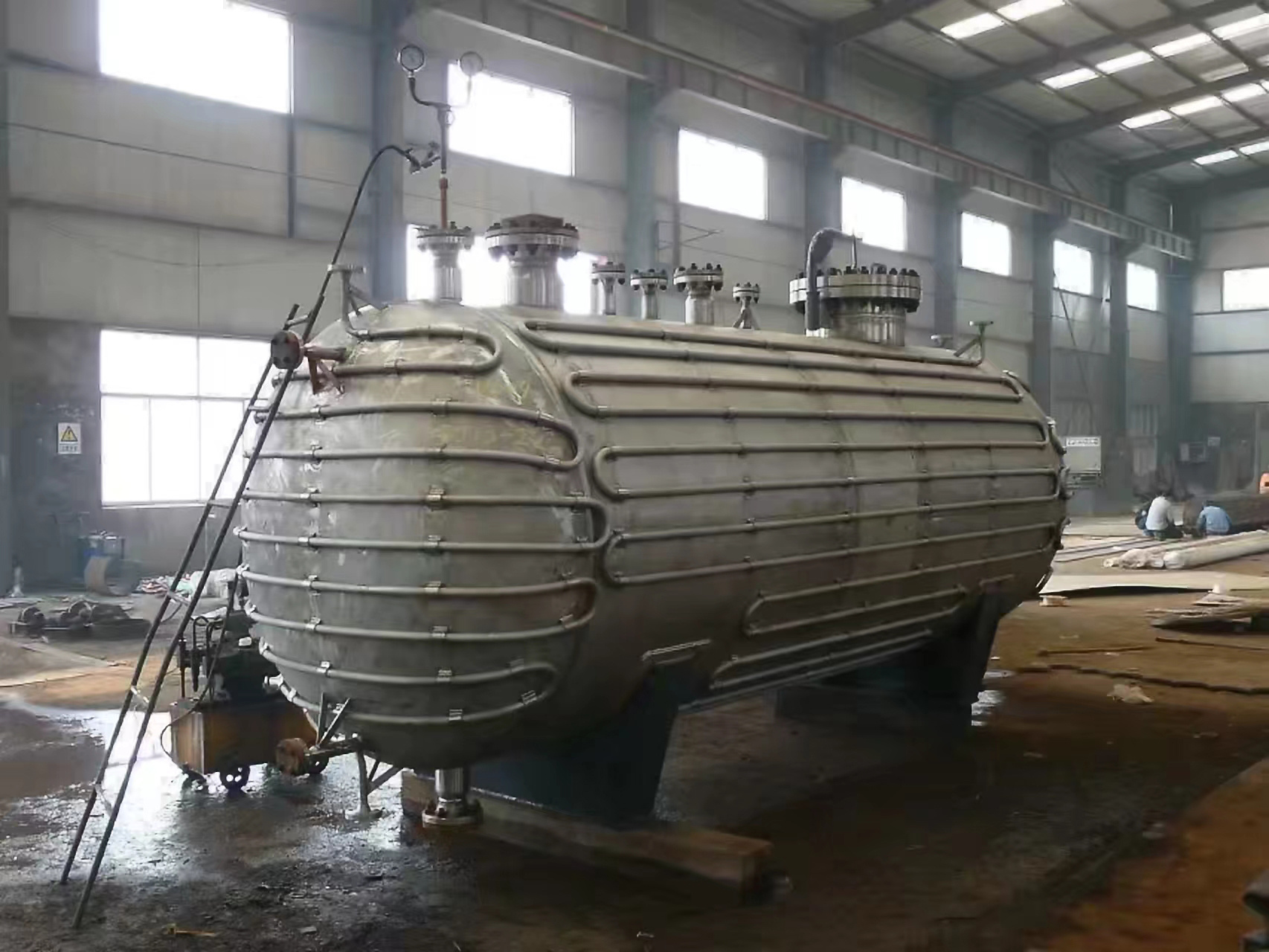

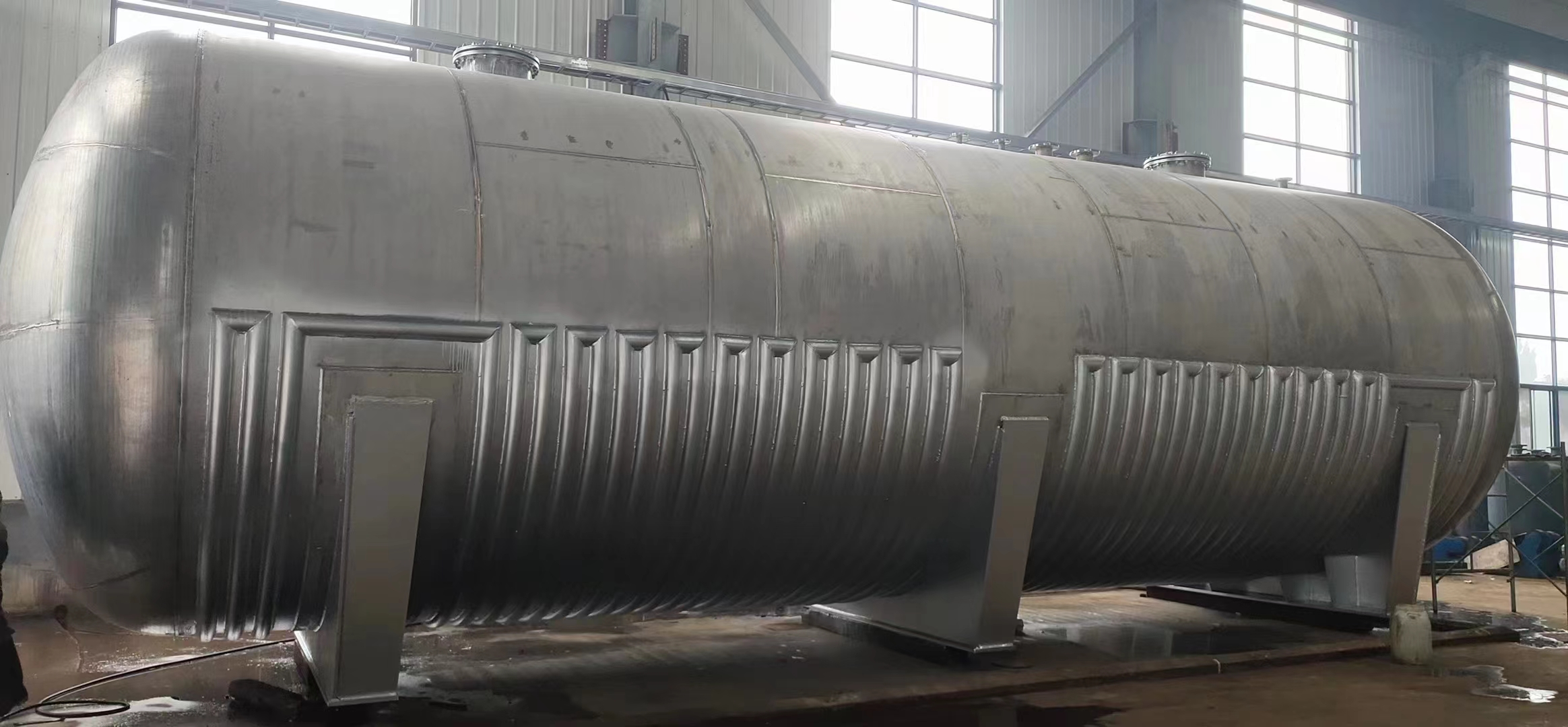

Outer Coil Heating Tank is an all-in-one industrial vessel designed for heating, insulating and storing liquid and paste materials. It adopts an external heating coil structure, using steam, thermal oil or hot water as the heating medium. The tank is made of food-grade and corrosion-resistant SUS304 or SUS316L stainless steel, with features of uniform heating, precise temperature control, easy cleaning and low energy consumption. It is widely used in food, pharmaceutical, cosmetic, chemical, coating and grease industries.
Key Specifications
- Material: SUS304 / SUS316L Stainless Steel
- Design: Vertical / Horizontal
- Capacity: 500L, 1000L, 2000L, 3000L, 5000L (Customizable)
- Heating Type: External coil – steam / thermal oil / hot water circulation
- Design Pressure: Atmospheric / 0.1–0.6MPa (pressure optional)
- Temperature Range: Room temperature to 200°C
- Finishing: Internal mirror polished / external matte polished
- Options: Agitator, insulation, level gauge, manhole, sight glass, temperature control system, explosion-proof configuration.
Product Advantages
1.Clean Heating Without Material Pollution: External coils keep no contact with internal materials, effectively preventing rust accumulation and residue contamination, complying with hygiene standards for food and pharmaceutical production.
2.Uniform Heating to Ensure Product Quality: Fully fitted coil structure realizes mild and even heat conduction, avoiding local overheating, material coking and deterioration.
3.High Heat Transfer Efficiency & Energy Saving: Low heat loss and fast temperature rise reduce energy consumption during long-term continuous operation, cutting production costs effectively
4.Corrosion Resistance & Long Service Life: Premium stainless steel features high temperature resistance, acid and alkali resistance, stable structure, low failure rate and simple daily maintenance.
5.Easy Cleaning Without Dead Corners: Smooth inner wall free of internal heating parts ensures thorough cleaning with no residual dirt, ideal for frequent material switching production.
6.Strong Customization & Wide Adaptability: Available in normal pressure, sealed and pressure-bearing types; mixers and heat preservation layers can be freely equipped to meet diverse working conditions.
7.Simple Operation & Safe Operation:Adjustable constant temperature control system is easy to operate for workers, ensuring stable and safe equipment running.
Outer Coil Heating Tank provides stable heating, high hygiene, easy cleaning and reliable performance. It is an ideal equipment for heating, insulating and storing industrial liquids.
